LJR Pump Distributors

AQS 4″ Borehole Motor 380V 20 BAR

R 2,150.98 ZAR

Sale Sold out

Shipping calculated at checkout.

KW 0.75 KW 380V AQS 20 BAR 1.1 KW 380V AQS 20 BAR 1.5 KW 380V AQS 20 BAR 2.2 KW 380V AQS 20 BAR 3.0 KW 380V AQS 20 BAR 4.0 KW 380V AQS 20 BAR 5.5 KW 380V AQS 20 BAR 7.5 KW 380V AQS 20 BAR

Quantity

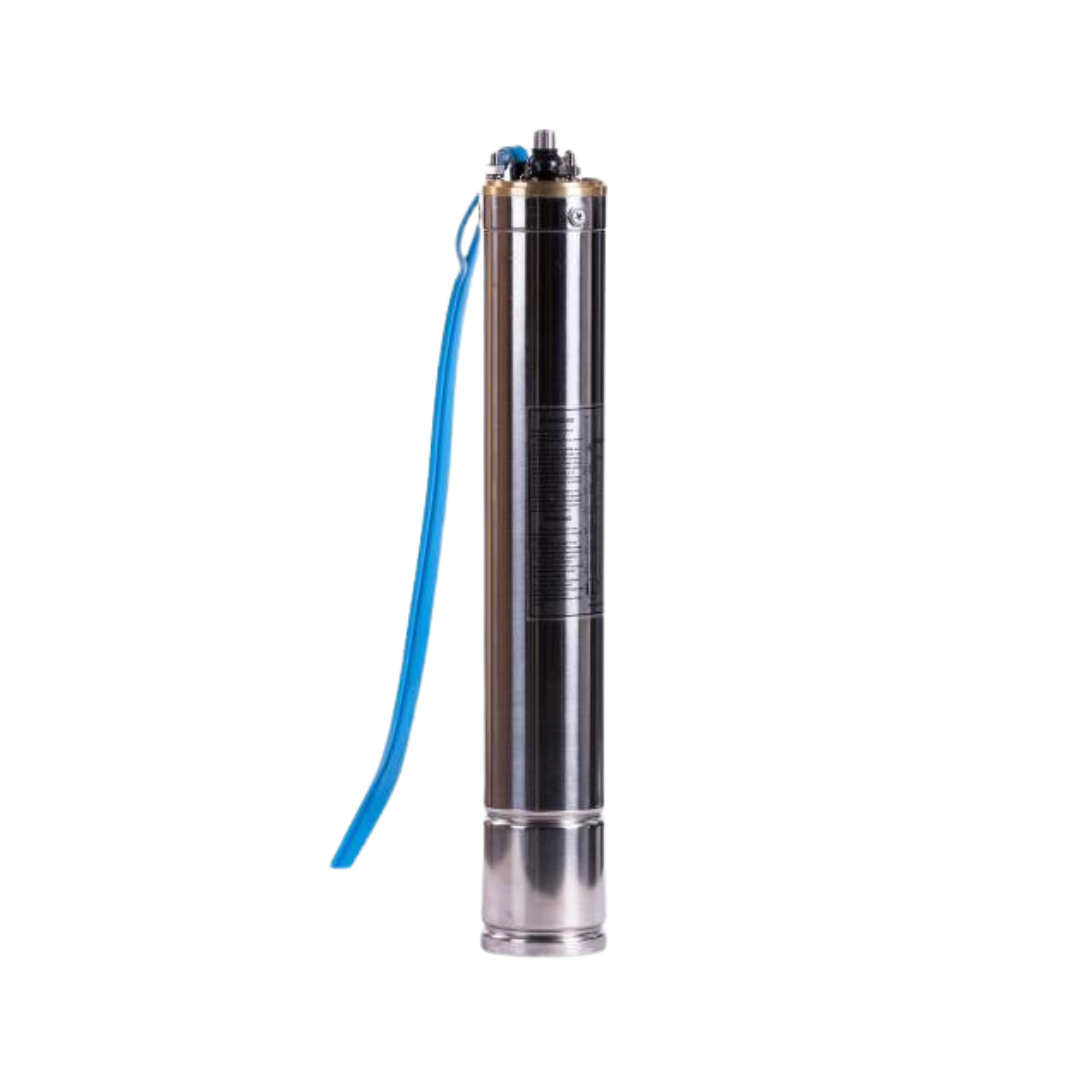

The Vega 4″ Oil Filled Borehole motor is manufactured from 304 Stainless Steel and the flange and coupling according to the NEMA standard. It can handle a submersion depth of up to 20 Bar.

Technical Data:

Single phase power: 0.37 to 2.2 kW

Speed: 2850rpm
Voltage: 220 ~ 240V/50Hz
Insulation class: B
Protection grade: IP 68
Highest temperature of Liquid: 35oC
Maximum solid handling: 40g/m3
Motor casing: stainless steel
Maximum diameter: Φ 95 mm

Three phase power: 0.37 to 7.5kW

Speed: 2850rpm
Voltage: 380 ~ 415V/50Hz
Insulation class: B
Protection grade: IP 68
Highest temperature of liquid: 35oC
Maximum solid handling: 40g/m3
Motor casing: stainless steel
Maximum diameter: Φ 95 mm
