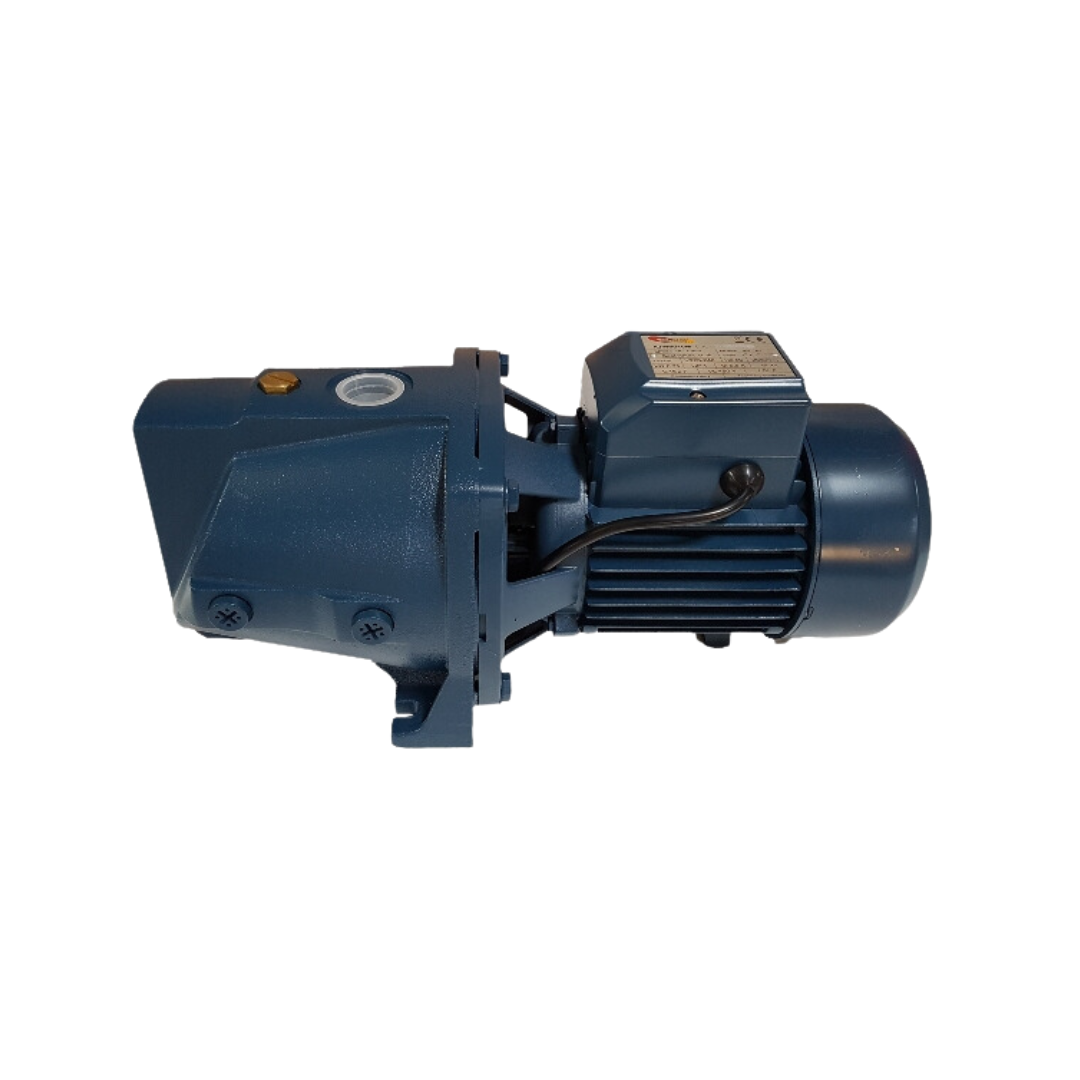

Hurricane 1.10KW – 220V – Cast Iron – Jet Pump – Self Priming

The Hurricane JSWM15M centrifugal pressure pump is a 220V 1.1KW self priming pump used to boost pressure in waterline and for the transfer of clean water or non-aggressive liquid.

Operating Conditions

• Maximum fluid temperature : 40°C
• Maximum ambient temperature : 40°C

Warranty : 12 Month

According to our general sales conditions

Specifications

• Voltage : 220V – 240V 50Hz
• Power : 1.1KW
• Power : 1.5HP
• Dimensions : 423mm(L) x 190mm(W) x 208mm(H)
• Outlet Size : 25mm (1″)
• Inlet Size : 25mm ( 1″)
• Max Suction : 8m
• Max Head : 60m
• Max Flow : 60L/min

Pump

• AISI 304 Shaft
• Maximum Suction : 9m

Motor

• Copper Winding
• Built in thermal protector for single phase motor
• Insulation class : F
• Protection class : IPX4
• Maximum ambient temperature : 40°C
• IE2 Motor
